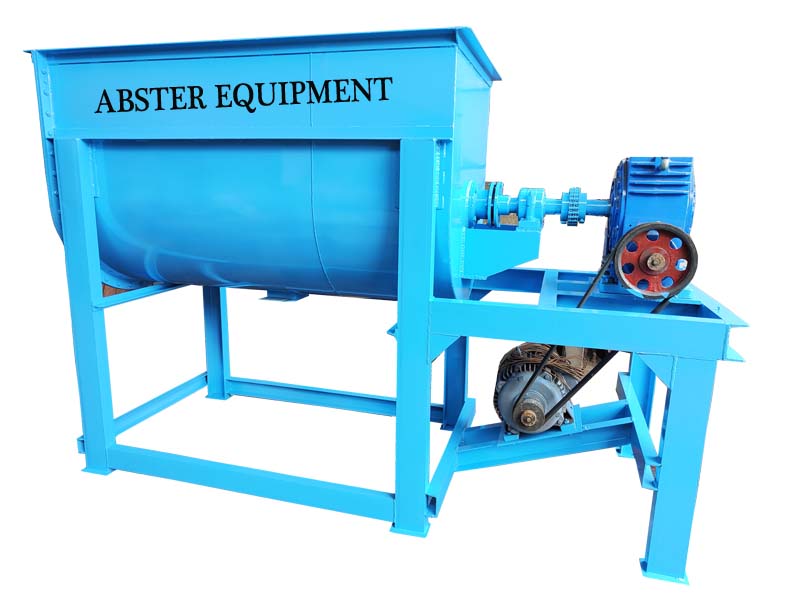

Industrial Ribbon Blender
Product Description
Horizontal Ribbon Mixer
Industrial Ribbon Blender, Ribbon mixer is designed for dry materials mixing, meantime liquid streams can be added. This mixer is composed of U-shaped cylinder, double helical ribbon blade and transmission parts. In working condition, the outer ribbon pushes materials from two sides to the middle, while the inner ribbon pushes materials from the middle to both sides. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly. Batch cycle time shorten due to high mixing efficiency.
Application:
Dry Powder, Putty, Modified Corn Starch, Real Stone Paint, Chemical, Food, Animal feed, Pharmaceutical, Fertilizer, Plastic, Battery, Cosmetic.
Models:500L~10000L are available
Fabricating Materials: SS304, SS316L, Carbon steel/MS
Heating/cooling jacket optional
Discharging Outlet: Bottom or Side
Customized machine is available.
Features:
1. Solid stainless frame body extra stong for ruged use,
2. Pneumatic Auto Discharger,
3. Fast Open Folio Lid
4. Curved Bottom Flip Board Valve, no dead angle
Technical Parameters Of Horizontal Mixer
| Model | 500L | 1000L | 1500L | 2000L | 3000L | 4000L | 5000L | 6000L | 8000L | 10000L |
| Volume(L) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Loading Factor | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor Power (KW) |
5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 |
| Gearbox Model | BWD2 | BWD3 | ZLY160 | ZLY180 | ZLY200 | ZLY200 | ZLY224 | ZLY224 | ZLY250 | ZLY280 |
| Speed (r/min) |
41 | 33 | 33 | 33 | 33 | 27 | 27 | 27 | 23 | 23 |
| Dimension L*W*H(m) | 1.9/0.7/1.4 | 3.0/0.8/1.5 | 3.2/1.35/1.6 | 3.3/1.4/1.7 | 3.5/1.5/1.7 | 3.6/1.4/1.7 | 3.7/1.6/1.7 | 3.8/1.7/1.8 | 4.5/1.8/1.9 | 4.8/2.0/2.1 |
| Plate thickness mm | 4 | 4 | 5 | 6 | 6 | 8 | 8 | 8 | 8 | 8 |
| Contact Material | SUS304 ( other material carbon steel, SUS201, SUS316L is available) | |||||||||
| Usually with oil film wire drawing polishing , mirror polishing price is more expensive. | ||||||||||
